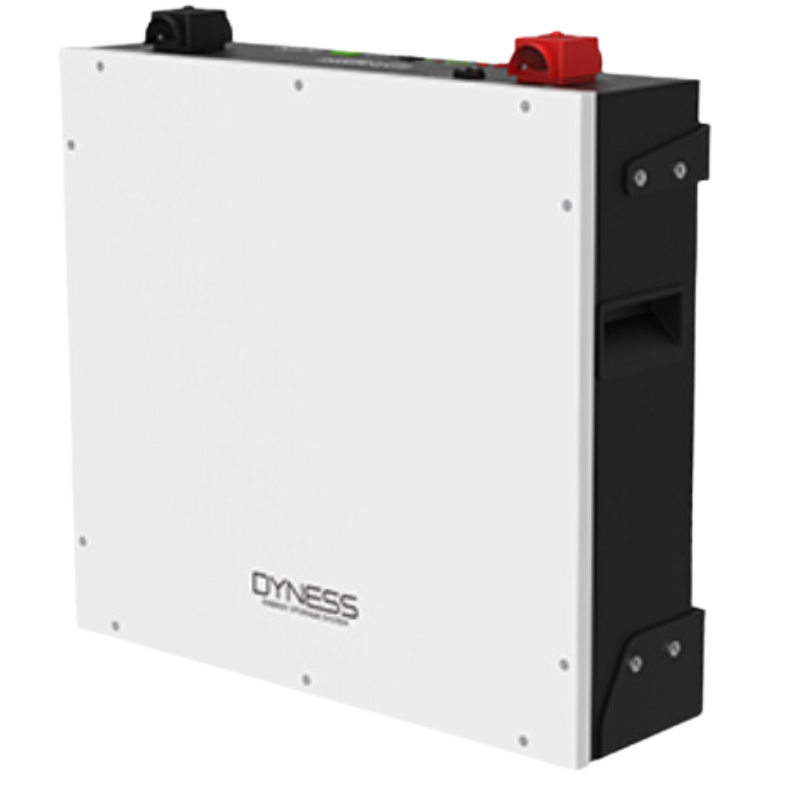

Dyness DL5.0C
advantage
Product Features
Pictures
Detail Presentation
Why choose this product
Data
TECHNICAL DATA
| Model | DL5.0C |
| Battery Type | LiFePO4 |
| Nominal Battery Energy | 5.12 kWh |
| Nominal Capacity | 100Ah |
| Nominal Voltage | 51.2V |
| Operating Voltage | 44.8 ~ 57.6V |
| Recomended Charge & Discharge C Rate | 0.5C |
| Maximum Discharge C rate | 1C |
| Recommended Charge/Discharge Current | 50A |
| Max. Power Charge/Discharge Current | Charge 75A Discharge 100A |
| Peak Power Charge/Discharge Current | 110A (15s) |
| Depth of Discharge (DOD) | 90% |
| Net Weight | 54 kg |
| Dimension[W*D*H] | 558*545*150 mm |
| Charging Temp. Range | 0~55°C/-20~55°C (with heating function) |
| Discharging Temp. Range | -20~50℃ |
| Communication | CAN/RS485/RS232 |
| Cycle Life[1] | ≥6000 Cycles |
| Protection Level | lP20 |
| Expansion | Up to 50 units in parallel |
| Pros | Can be used in both off-grid and hybrid setups, compact design |
| Certification & Safety Standard | UN38.3/CE-EMC/IEC62619/CEI-021 |
| Compatible Inverters | SMA/Victron/lngeteam/Delios/Goodwe/Solis/Deye/SAJ/Voltronic/Growatt/APS etc |
Test conditions: 0.2C Charging/Discharging, @25oC, 90% DOD
