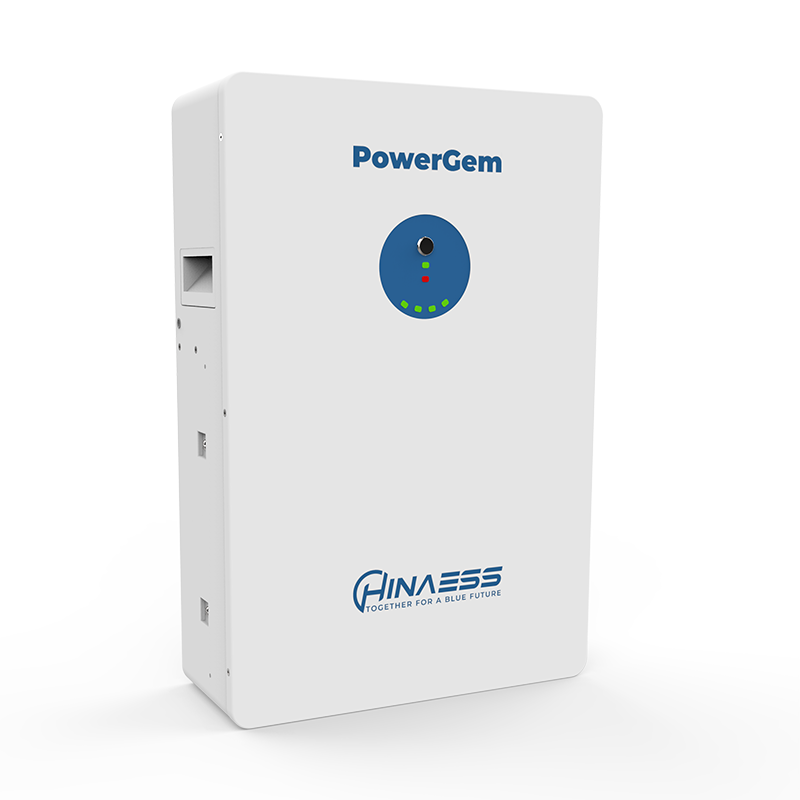

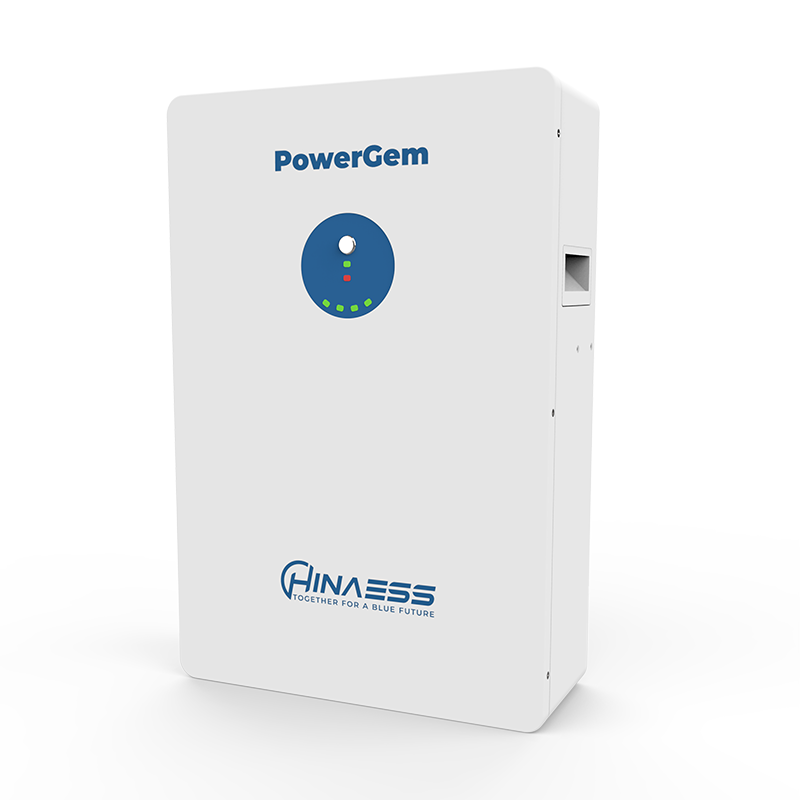

HINAESS Wall-mounted ESS PowerGem 5kWh

PowerGem is our latest wall-mounted energy storage solution, designed for space-saving installation without compromising performance.

Powered by advanced LFP technology, PowerGem is engineered to provide an exceptional cycle life, boasting a rated cycle life of up to 6,000 cycles.

What sets PowerGem apart is its seamless remote update capability, ensuring it always stays equipped with the latest firmware. Additionally, PowerGem offers remote monitoring features, enabling customers to effortlessly track their battery’s performance from anywhere around the globe.

With its intelligent BMS (Battery Management System), PowerGem enables intelligent monitoring and precise management of battery performance. This maximizes energy efficiency while minimizing the risk of damage or failure.

Certificates

CE UN38.3 IEC62619

Available from warehouse

advantage

Product Features

Neat

10 year warranty / Ultra safe LFP material /Elegant enclosure design /Floor-standing / wall-mounting

Handy

Quick installation / Remote monitoring / Flexible remote upgrade /Auto-addressing for master / slaves set up

Robust

Wide range inverter compatibility / 1C rate continuous charge/discharge / Multi protection to avoid over discharge / Smart BMS management for longer lifespan / Active balancing charging, low self consumption

Pictures

Detail Presentation

Why choose this product

Data

TECHNICAL DATA

PowerGem

Model	PowerGem
Cell Type	LFP
Rated Power	5.12kWh
Rated Capacity	100Ah
Rated Voltage	51.2V
Charge Voltage	56.5V
Max Charge/Discharge Current	100A
Discharge Peak Current	105A / 15s, 120A / 0.5s
Parallel	Up to 32 units parallelable w/o extra device needed, slave battery drops offline or come back alive does not affect system running
IP Level	IP20
Dimension	640428166mm
Weight	58Kg
Communication	CAN/RS485
Compatible Inverter	Victron, Luxpower, Deye, Voltronic, SMA Goodwe, Growatt, Sofar, Solark, SRNE, Must
Humidity	5%~85% RH (No condensation)
Work Temperature	-20 ℃ ~ +55 ℃
Storage Temperature	-10 ℃ ~ +35 ℃
Remote Maintenance	Flexible remote upgrade, remote monitoring Original firmware backup to prevent upgrade failure
Warranty *	10 year, 6000 cycles
Certification	CE UN38.3 IEC62619
Protection	Over charge/discharge/current/voltage/temperature protection Short circuit protection, Reverse connection protection Stronger active balance, Low SOC protection
